Calculation: Buck Boost Converter

Operating Conditions
Vin [V_DC]: Vout [V_DC]: Iout [A_DC]: fsw [kHz]: N [Q1 // FETs]:

Gate Driver Parameters
Vgdrive [V]: Rg_Ext [Ω]: Rpu [Ω]: Rpd [Ω]:

Diode Parameters
VF_D1 [V]: Qrr_D1 [C]:

Circuit Parameters
Lout [H]: DCRout [Ω]: Kh_Lout [Constant]: B_Lout [Tesla]: x_Lout [Exponent]:
Cin [F]: ESRin [Ω]: Cout [F]: ESRout [Ω]:

Thermal Parameters
TA [°C]: RthCA [°C/W]: TempCoeff [RDSon-TA Default]:

Calculated Parameters
Tsw [s]: D: diLout [in %]: dVCout [in %]: Pout [W]:


Select Your Power Devices
Use parametric data from datasheet tables        Add measurement data from datasheet graphs

Select Mosfet Part [Q1]

Material Qualification
RDSON [Ohm] - Mounting
VDS [V] Package Area [mm2] -



   OR

Note: Configuration, VDS [V], RDSon [mOhm] (Typ/Max), Vth_Max [V], Vgp_Typ [V]


Converter Steady State Waveforms (assuming ideal switches)


Please wait.. We are currently processing your request, which may take some time to load.

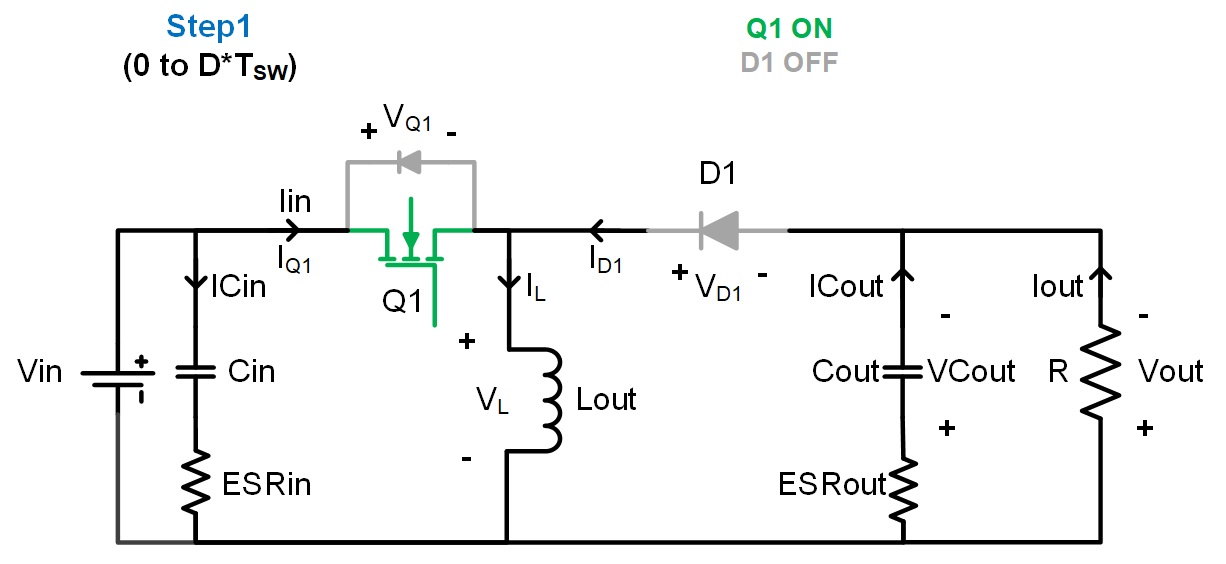

  • STEP-1

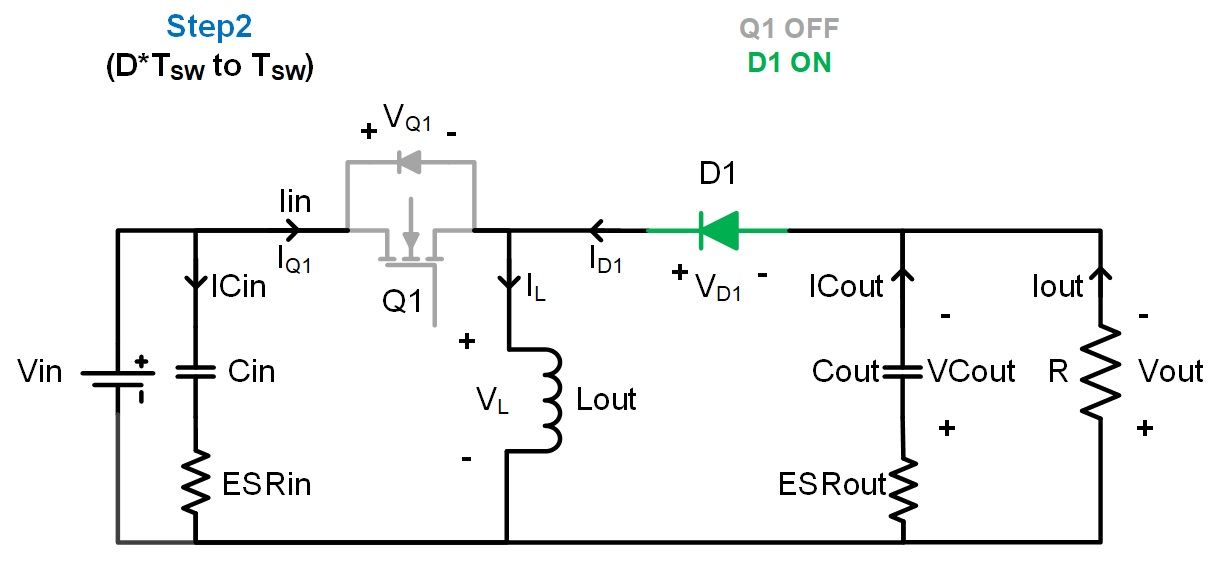

  • STEP-2



Loading.. ILav, IL Vs. Time
IL_RMS = 6.253 A


Loading.. VL, Vin, Vout Vs. Time


Loading.. Iin, ICin Vs. Time
Iin_RMS = 5.395 A
ICin_RMS = 2.874 A


Loading.. Q1_Parameters Vs. Time
Q1_VDS_RMS = 20.653 V
Q1_IDS_RMS = 5.409 A


Loading.. PowerLoss Vs. Time
